Aerial Diagrams

Aerial Roof And Wall
Measurement Services

Get accurate roof measurements

  • Reduction of business costs
  • Integration with Job Nimbus
  • Sketch files available for Xactimate, Symbility and Autocad
  • Take offs based on your blueprints


Utilize Latest


Fastest Report


About Aerial Diagrams

Discover an Advanced Level of

Aerial Diagrams is proud to offer Aerial Roof Measurement sevices to the roofing industry. We use the latest in technology and highest quality aerial and satellite images to create our roofing measurements. Using these images together with our web based software, we are able to create a roof take-off that is just as accurate as on-site measurements. In fact, our roofing measurements have been proven accurate to within 2%-5% and fastest report delivery compared to other Aerial Roof Measurement Companies.

Aerial Diagrams Features

Satellite Roof Measurements

Don't Hand Measure a Roof, Get A Roof Report Using Accurate Satellite Roof Measurements at Aerial Diagrams. We're dedicated to saving your time, reducing your cost of business, improving your customer service, and profitability by providing your business with automated Aerial Roof Measurements. Our reports are unique because They are just as accurate as on-site measurements, Our valuable customers confirm this statement. Are you one of them? Try the technology that is saving your time, money and same day delivery. See how it's all possible by signing up and ordering a roof report for yourself.

Features of a Roof Reports

  • Accurate Roof Pitch Measurements.
  • Roof Measurements including Area, Rakes, Ridges, Hips and Valleys, & every edge is separately measured and identified.

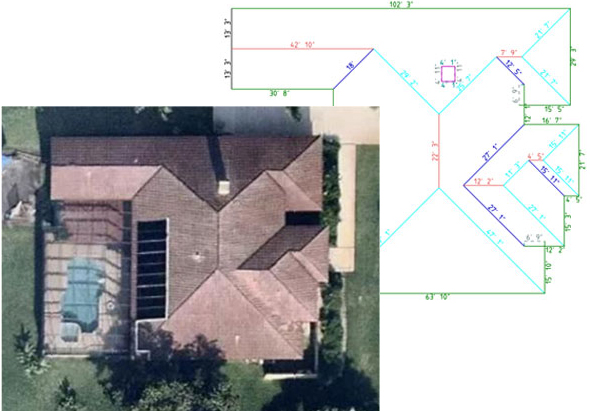

  • CAD style drawings with colored lines identifying every type of roof edge.
  • Online access to your Roof Reports for your Employees, Subs and Suppliers with no software to install.
  • Multiple image providers for over 98% coverage of the USA & Canada.
  • Also supports file formats such as XML,RFX,DFX/DWG, ESX AND WRL.
Aerial Diagrams Reports

Our Reports

Our roof reports start at under $16 with no set-up or membership fees. We are certain that once you see the benefits of our roof report and complete summary of each facet, you will never go back to old fashioned roof reports again. Aerial Diagrams is the most complete source for all your Satellite Roof Measurements. We know what contractors and insurance professionals want.
